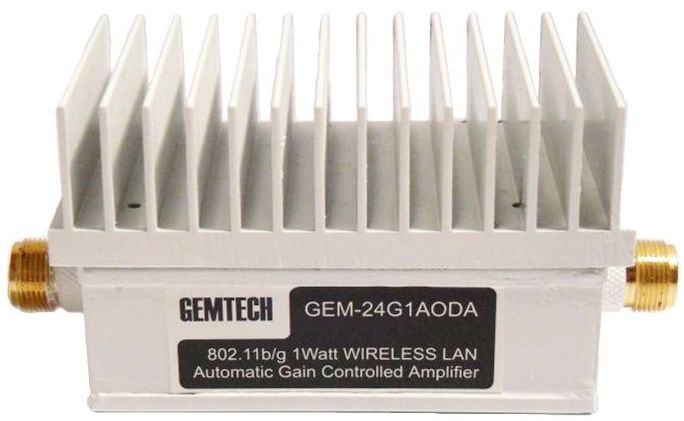

1 Watt Bi-Directional Automatic Gain Controlled Outdoor Amplifier

2.4GHz 802.11 b/g/n Outdoor Amplifier (2 Watts saturated)

A highly linear amplifier with Max saturated output of 2 Watts designed in a completely weatherproof housing with large heat sink  for all outdoor applications. This amplifier is powered over coax with DC injector.
Active Power Control circuit automatically adjust the amplifier’s gain to provide a constant output power regardless of the cable length.
The unit can be configured to deliver the full transmit power with as little as 4mW of input power, permitting cable runs several tens of meters with no degradation in operating range.

KEY FEATURES:
Transmit Gain: Utilizing Gallium Arsenide Heterojunction Bipolar Transistor (HBT), the unit provides full saturated output power of 33.0dBm.
LNA: The built-in Low Noise Amplifier with signal gain of 12dB improves the receive sensitivity of remote equipment, while keeping noise level very low.
Receive Filtering: All radio equipment contain filter for receive path. The band pass filter on this amplifier gives added protection against out of band noise.
Active Power Control:  Automatically adjusts the amplifier's gain to provide a constant output power regardless of cable length.
RF Connectors: Standard N Female connectors.
DC Injector: Simplifying installation.
Warranty: All GEM Microwave's products come with 1-year warranty.

This set includes:
 The Outdoor Amplifier
 DC Power Injector

Options:
 Linear transmit gain.
 N male RF Connector for tha Antenna port (no cable between the amplifier and antenna).



 APPLICATIONS:
 2.4GHz ISM Band Applications
 802.11b/g and 802.11n WiFi Wireless LAN
 Public Wireless Hotspot

Buy 1 Watt Outdoor Amplifier today


Download Specifications
GEM-24G1AODA  1 Watt Bi-Directional Outdoor Amplifier Datasheet

Accessories:
24-INJ-1        DC Power Injector
PS12-1          Universal power supply (110~240V AC to 12V DC 1A )

Product Information
For more information about our products, please  email us at sales7@gemmicrowave.com
