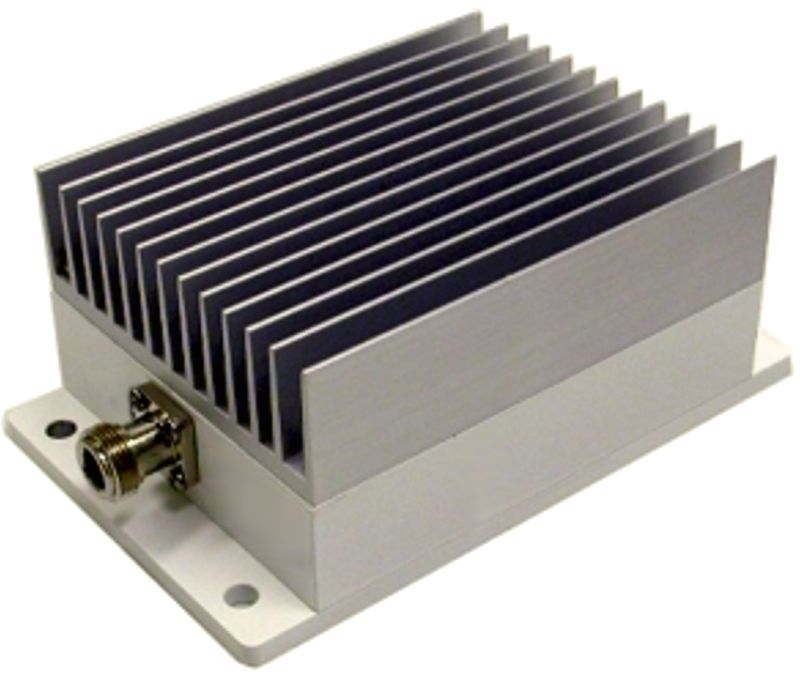

10 Watt Bi-Directional Amplifier

2.4GHz 802.11 b/g/n Indoor Amplifier (25 Watts saturated)

GEM Microwave's 24G10W  indoor RF amplifier has high output power and excellent linearity make it the highest performance wireless LAN amplifier available today. Compatible with 802.11b/g/n wireless LAN equipment and all CW applications. The built-in Intelligent Active Power Control circuit automatically adjusts the amplifier’s gain to provide a constant output power regardless of cable length, radio transmit power, temperature shifts or equipment aging, and protect the amplifier by reducing the output power when operating in high temperature condition. The Active Power Control circuit can be completely switched off and the amplifier operates in linear gain mode. This exclusive GEM Microwave feature allows the amplifier to be used in both burst half-duplex and CW applications. Also available in completely sealed, weatherproof version for all outdoor applications.

KEY FEATURES:
Transmit Gain: Automatically adjusted, 23dB when operating in linear gain mode. The full saturated output power is 44.0dBm.
Selectable Output Power: 10Watt ( Mode 1 ),  5Watt ( Mode 2 )  or linear gain ( Mode 3 ).
Intelligent Active Power Control Algorithm.
Compatible with both burst half-duplex and CW applications.

Temperature and overload protection.
Industrial Grade Construction.
Ruggedness: Pin= +20dBm, CW, VSWR = 5:1, all phases, no damage.
LNA: The built-in Low Noise Amplifier with signal gain of 22dB improves the receive sensitivity of remote equipment, while keeping noise level very low.
Receive Filtering: All radio equipment contain filter for receive path. The band pass filter on this amplifier gives added protection against out of band noise.
Warranty: 2-years.

This set includes:
 The indoor Amplifier
 Universal power supply  (110~240V AC to 15-24V DC 4.5A)

APPLICATIONS:
 2.4GHz ISM Band Applications
 802.11b/g and 802.11n WiFi Wireless LAN
 Public Wireless Hotspot

Due to the high RF power output this unit is only offered for sale to Military, OEM or Licensed customers.

Buy 10 Watt Indoor Amplifier today

Download Specifications
24G10W  10 Watt Bi-Directional Amplifier Datasheet

Accessories:
PS24-4_5   Universal power supply (110~240V AC to 15-24V DC 4.5A )
